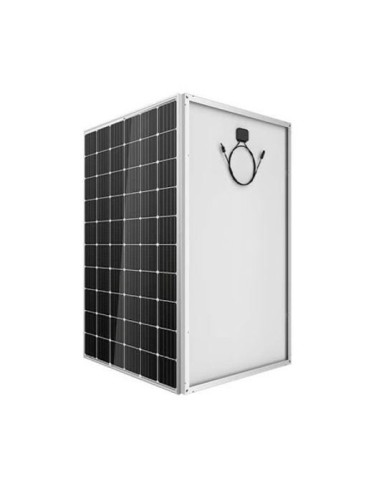

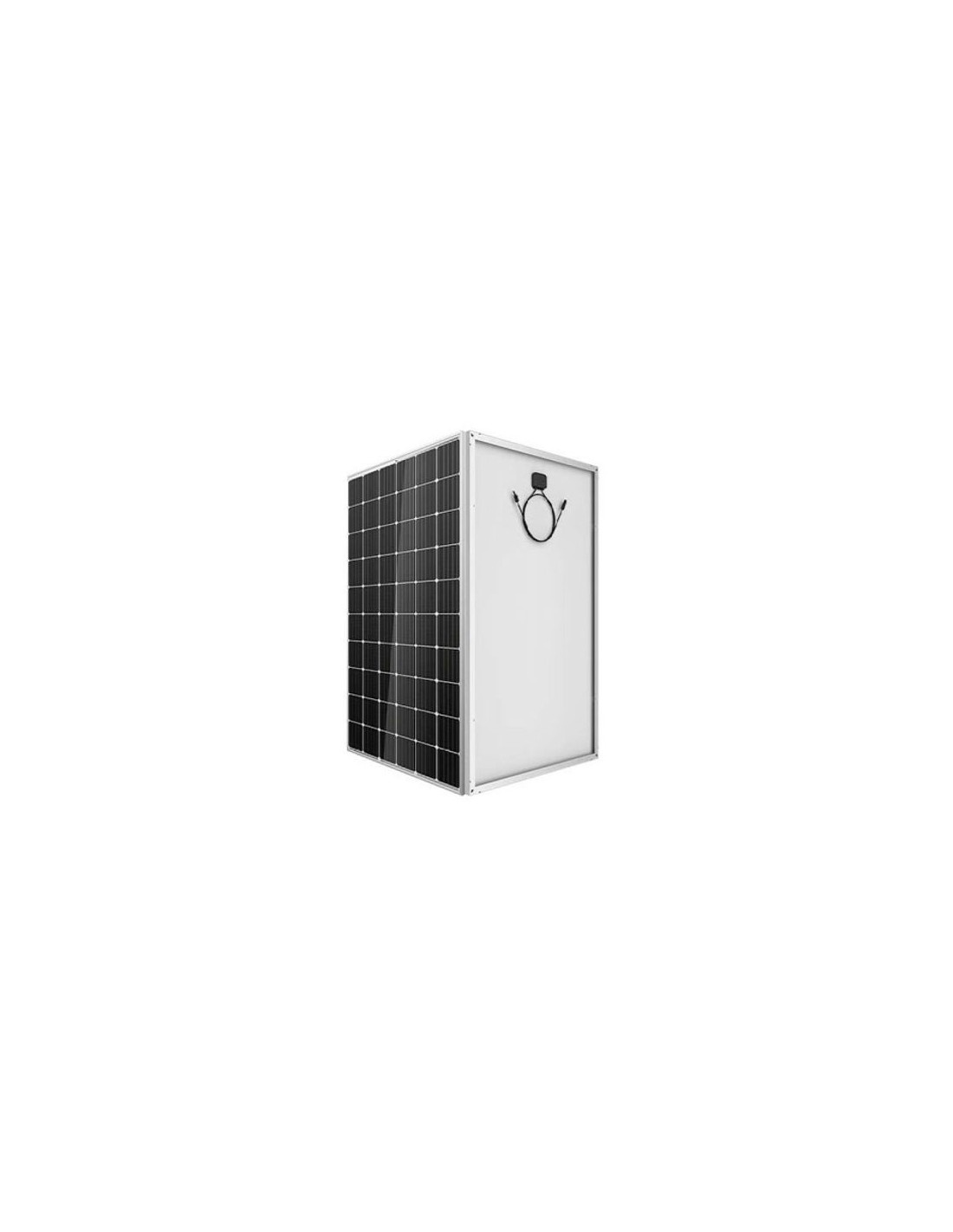

PANEL FOTOVOLTAICO 330W 24V POLICRISTALINO

Maximum Power (Pmax) 330W

Open Circuit Voltage (VOC) 45.7V

Short Circuit Current (ISC) 9.28A

Voltage at Maximum Power (Vmp) 37.1V

Current at Maximum Power (Imp) 8.77A

Module Efficiency (%) 16.39

Operating Temperature -40°C to +85°C

Maximum System Voltage 1000V DC/1500V DC

Fire Resistance Rating Type 1(in accordance with UL 1703)

Class C(IEC 61730)

Maximum Series Fuse Rating 15A

Cell type Polycrystalline 158.75*158.75mm

Number of cells 72 (6x12)

Module dimensions 1956x992x35mm

Weight 21.kg (47.4lbs)

Front cover 3.2mm (0.13inches) tempered glass with AR coating

Frame Anodized aluminum alloy

Junction box IP67, 3 diodes Cable 4mm2 (0.006inches2 ), 1000mm (39.37inches)

Connector MC4 or MC4 compatible

Nominal Operating Cell Temperature (NOCT) 45°C±2°C

Temperature Coefficients of Pmax -0.39%/°C

Temperature Coefficients of VOC -0.30%/°C

Temperature Coefficients of ISC 0.05%/°C
